BU508AW Datasheet - ST Microelectronics

BU508AW High voltage NPN Power transistor

The BU508AW is manufactured using Diffused Collector in Planar Technology adopting new and enhanced high voltage structure for updated performance to the Horizontal Deflection stage. Order codes Part Number BU508AW Marking BU508AW Package TO-247 Packaging Tube March 2007 Rev 1 1/8 www.st.com 8 .

BU508AW Features

* State-of-the-art technology:

* Diffused collector “Enhanced generation” Stable performances versus operating temperature variation Low base-drive requirement Tight hFE range at operating collector current High ruggedness TO-247 semi-insulated power

BU508AW Datasheet (133.39 KB)

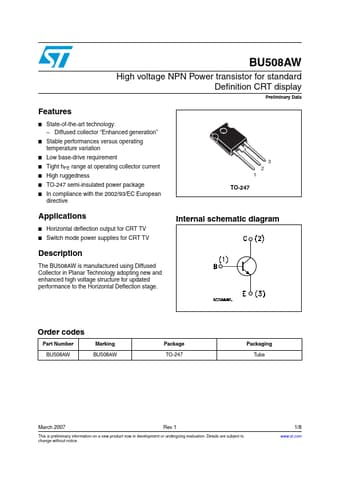

Preview of BU508AW PDF
BU508AW Datasheet Preview Page 2 BU508AW Datasheet Preview Page 3

Datasheet Details

Part number:

BU508AW

Manufacturer:

STMicroelectronics ↗

File Size:

133.39 KB

Description:

High voltage npn power transistor.
