SD2931 Datasheet, MOSFETs, ST Microelectronics

PDF File Details

Part number:

SD2931

Manufacturer:

STMicroelectronics ↗

File Size:

47.83kb

Download:

📄 Datasheet

Description:

Rf power transistors hf/vhf/uhf n-channel mosfets. The SD2931 is a gold metallized N-Channel MOS field-effect RF power transistor. The SD2931 is intended for use in 50V dc large signal

SD2931 Application

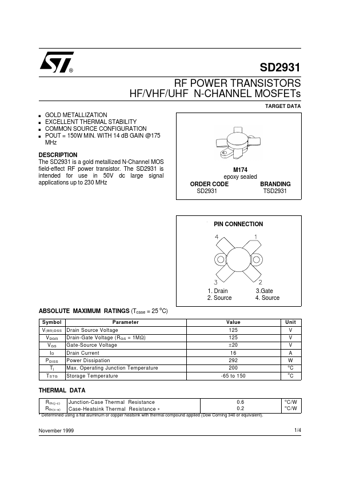

• Applications up to 230 MHz M174 epoxy sealed ORDER CODE BRANDING SD2931 TSD2931 PIN CONNECTION 1. Drain 2. Source ABSOLUTE MAXIMUM RATINGS (Tcase
