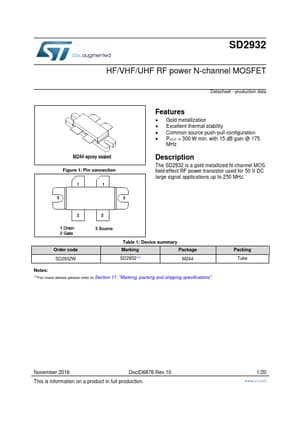

SD2932 Datasheet, Mosfet, ST Microelectronics

SD2932 Features

• Mosfet
• Gold metallization
• Excellent thermal stability
• Common source push-pull configuration
• POUT = 300 W min. with 15 dB gain @ 175 MHz Description The

PDF File Details

Part number:

SD2932

Manufacturer:

STMicroelectronics ↗

File Size:

1.38MB

Download:

📄 Datasheet

Description:

Hf/vhf/uhf rf power n-channel mosfet. The SD2932 is a gold metallized N-channel MOS field-effect RF power transistor used for 50 V DC large signal applications up to 250 M

SD2932 Application

• Applications up to 250 MHz. Order code SD2932W Table 1: Device summary Marking Package SD2932(1) M244 Notes: (1)For more details please refer
