STGIPL14K60 - short-circuit rugged IGBT

Product Overview

ST Microelectronics

Datasheet Details

Part number	STGIPL14K60
Manufacturer	STMicroelectronics
File Size	834.59 KB
Description	short-circuit rugged IGBT
Datasheet	STGIPL14K60 Datasheet

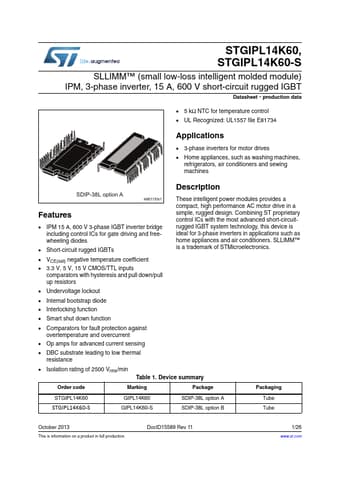

Additional preview pages of the STGIPL14K60 datasheet.

Product details

Description

The new intelligent power module developed by STMicroelectronics provides a compact, high performance AC motor drive for a simple and rugged design. 3-phase inverters for motor drives Home appliances, such as washing machines, refrigerators, air conditioners Table

Features

600 V, 14 A 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes 3.3 V, 5 V, 15 V CMOS/TTL inputs comparators with hysteresis Internal bootstrap diode Dead time and interlocking function 5 kΩ NTC for temperature control VCE(sat) negative temperature coefficient Short-circuit rugged IGBT Under-voltage lockout DBC fully isolated package Isolation rating of 2500 Vrms/min Smart shut down function Op-amps for advanced current sensing Comparators for fault.
