STGIPN3H60 Datasheet - STMicroelectronics

3-phase inverter bridge IGBT

STGIPN3H60 Features

* IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes

* Optimized for low electromagnetic interferences

* VCE(sat) negative temperature coefficient

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis an

STGIPN3H60 General Description

This intelligent power module implements a compact, high performance AC motor drive in a simple, rugged design. It is composed of six IGBTs with freewheeling diodes and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching.

STGIPN3H60 Datasheet (839.83 KB)

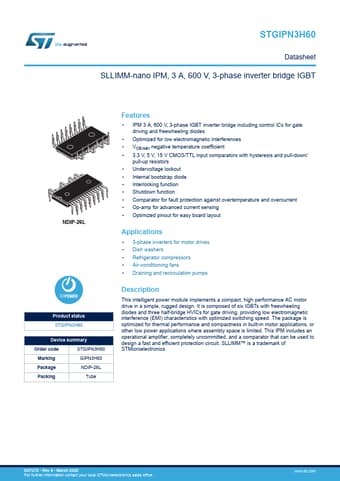

STGIPN3H60 Datasheet Preview — Preview of STGIPN3H60 PDF

Datasheet Details

Part number:

STGIPN3H60

Manufacturer:

STMicroelectronics ↗

File Size:

839.83 KB

Description:

3-phase inverter bridge igbt.
STGIPN3H60 Datasheet SLLIMM-nano IPM, 3 A, 600 V, 3-phase inverter bridge IGBT NDIP-26L Product status STGIPN3H60 Device summary Order code STGIP.
