STGIPN3H60T-H Datasheet - STMicroelectronics

IGBT

STGIPN3H60T-H Features

* IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes

* Optimized for low electromagnetic interference

* VCE(sat) negative temperature coefficient

* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis and

STGIPN3H60T-H General Description

This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six IGBTs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switch.

STGIPN3H60T-H Datasheet (0.98 MB)

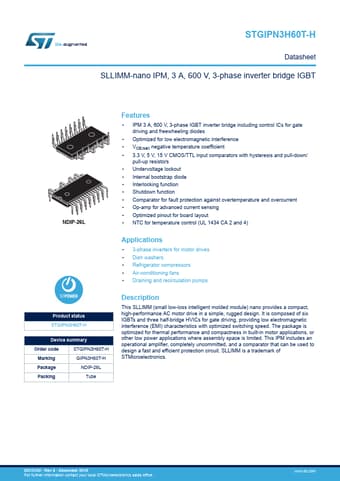

Preview of STGIPN3H60T-H PDF

Datasheet Details

Part number:

STGIPN3H60T-H

Manufacturer:

STMicroelectronics ↗

File Size:

0.98 MB

Description:

Igbt.
STGIPN3H60T-H Datasheet SLLIMM-nano IPM, 3 A, 600 V, 3-phase inverter bridge IGBT NDIP-26L Product status STGIPN3H60T-H Device summary Order code .
