STGIPN3HD60-H IGBT

STMicroelectronics

Description

STGIPN3HD60-H Datasheet SLLIMM-nano IPM, 3 A, 600 V 3-phase inverter bridge IGBT NDIP-26L Product status STGIPN3HD60-H Device summary Order code .
This SLLIMM (small low-loss intelligent molded module) nano provides a compact, high-performance AC motor drive in a simple, rugged design.

📥 Download Datasheet

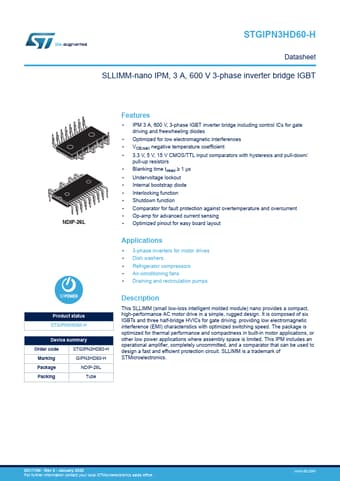

STGIPN3HD60-H Datasheet Preview — Preview of STGIPN3HD60-H PDF

Datasheet Specifications

Part number: STGIPN3HD60-H
Manufacturer: STMicroelectronics ↗
File Size: 1.10 MB
Datasheet: STGIPN3HD60-H-STMicroelectronics.pdf
Description: IGBT

Features

* IPM 3 A, 600 V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes
* Optimized for low electromagnetic interferences
* VCE(sat) negative temperature coefficient
* 3.3 V, 5 V, 15 V CMOS/TTL input comparators with hysteresis an

Applications

* 3-phase inverters for motor drives
* Dish washers
* Refrigerator compressors
* Air-conditioning fans
