STGP8NC60KD, STGB8NC60KD short circuit rugged IGBT

ST Microelectronics

Description

STGB8NC60KD, STGD8NC60KD STGF8NC60KD, STGP8NC60KD Datasheet 8 A, 600 V short-circuit rugged IGBT TAB 3 1 D2 PAK TAB 23 1 DPAK TAB 3 2 1 TO-220FP T.
These devices are very fast IGBTs developed using advanced PowerMESH technology.

📥 Download Datasheet

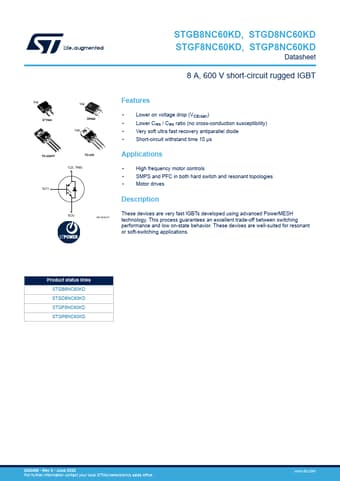

STGP8NC60KD Datasheet Preview — This datasheet PDF includes multiple part numbers: STGP8NC60KD, STGB8NC60KD. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STGP8NC60KD, STGB8NC60KD
Manufacturer: STMicroelectronics ↗
File Size: 1.79 MB
Datasheet: STGB8NC60KD_STMicroelectronics.pdf
Description: short circuit rugged IGBT
Note: This datasheet PDF includes multiple part numbers: STGP8NC60KD, STGB8NC60KD.
Please refer to the document for exact specifications by model.

Features

* Lower on voltage drop (VCE(sat))
* Lower Cres / Cies ratio (no cross-conduction susceptibility)
* Very soft ultra fast recovery antiparallel diode

Applications

* High frequency motor controls
* SMPS and PFC in both hard switch and resonant topologies
