STI5514

Set-top box decoder with hard disk drive capability for digital TV / digital set-top box or cable box

STI5514 Features

* 180 MHz 32-bit ST20 CPU

* 8 Kbytes instruction SRAM, 8 Kbytes of Icache and 8 Kbytes of D-cache Integrated DES-ECB, DVB and ICAM descramblers NDS RASP compliant

* 3 programmable transport interfaces (PTIs)

* Stereo downmixing, Dolby Pro Logic compatible output

* PCM mixing

STI5514 General Description

STMicroelectronics, the world leading supplier of MPEG-2 decoders, offers a complete range of integrated circuits for set-top box applications. The STi5514 device integrates a 32-bit CPU, an MPEG2 decoder and many of the peripheral functions required by today’s powerful STBs. Additionally, the STi55.

STI5514 Datasheet (58.76 KB)

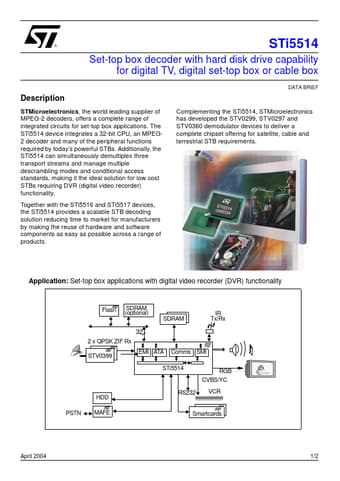

Preview of STI5514 PDF

Datasheet Details

Part number:

STI5514

Manufacturer:

STMicroelectronics ↗

File Size:

58.76 KB

Description:

Set-top box decoder with hard disk drive capability for digital tv / digital set-top box or cable box.
