STI5107 - Low-cost interactive set-top box decoder

STI5107 Description

STi5107 Low-cost interactive set-top box decoder Data Brief .
STi5107 1 1.

STI5107 Features

* Enhanced ST20 32-bit VL-RISC CPU memory interface
* up to166 MHz,16-bit wide SDR/DDR SDRAM interface Programmable flash memory interface Programmable transport interface (PTI)
* single transport stream input
* support for DVB transport streams MPEG-2 MP@ML video decode

STI5107 Applications

* Typical applications are shown in the Figure 1, Figure 2 and Figure 3. Figure 1. Basic terrestrial pay TV IR Tx/Rx SDR DDR Tuner Transport stream in STV0362 DV-T Rx RGB or YC+CVBS STi5107 CVBS VCR Smart Card Flash 2/14 STi5107 Figure 2. Basic satellite pay TV receiver IR Tx/Rx SDR or DDR STV

📥 Download Datasheet

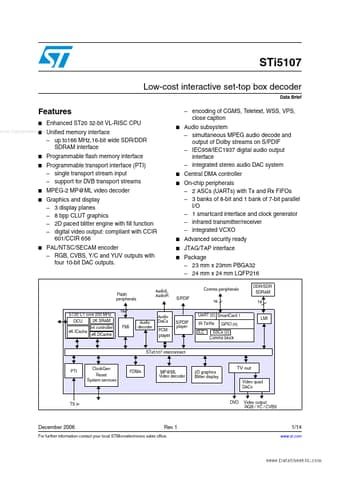

Preview of STI5107 PDF
datasheet Preview Page 2 datasheet Preview Page 3
