STI5202 Low-cost set-top box decoder

STI5202 Description

STi5202 www.datasheet4u.com Low-cost set-top box decoder for H.264 and Microsoft VC1 Data Brief * .
The STi5202 is a new generation, set-top box/DVD decoder chip, and provides very high performance for low-cost systems.

STI5202 Features

* Single-chip, video decoder including
* Linux®, Windows® CE and OS21 compatible ST40 CPU core: 266 MHz
* Transport filtering and descrambling
* Video decoder: VC-1 (including WMV 9), H.264 (MPEG-4 part 10) and MPEG-2
* SVP compliant
* Windows Media™ DRM

STI5202 Applications

* . DDR SDRAM 5 x 2-ch S/PDIF PCM out AudioL 2-ch PCM in AudioR Audio DACs Audio decoder and interfaces SD video in Peripheral I/O and external interrupts 32 ST40 core 266 MHz UDI 16 K Icache Int. control MMU 32 K Dcache System LMI 2x I/F SmCard Digital video input STBus USB 2.0 6x GPIO IR Tx/

📥 Download Datasheet

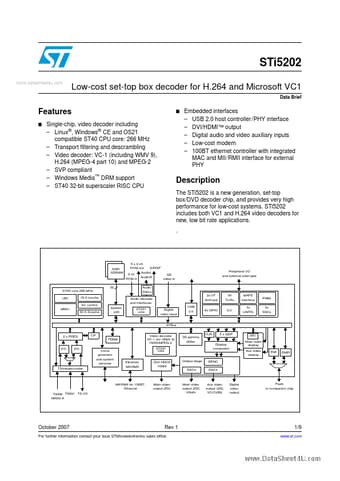

Preview of STI5202 PDF
datasheet Preview Page 2 datasheet Preview Page 3
