STi5301 High-performance set-top box decoder

STi5301 Description

STi5301 www.DataSheet4U.com High-performance set-top box decoder DATA BRIEF .
The new MPEG-2 decoder from ST provides a step-change in performance for pay TV set-top boxes and digital video recorders.

STi5301 Features

* s ST231 VLIW host CPU
* 333 MHz, 32 Kbyte ICache, 32 Kbyte DCache
* up to 1.333 GOPs at 333 MHz
* dynamic memory management through MMU s s s s PAL/NTSC/SECAM encoder
* RGB, CVBS, Y/C and YUV outputs with 10-bit DACs www. DataSheet4U. com
* encoding of CGMS, Te

STi5301 Applications

* of the future. Both Linux and OS21 operating systems are supported, and an MMU provides support for virtual memory management. The STi5301’s power comes from the VLIW architecture of the ST230 CPU. This allows four instructions to be executed at each CPU cycle, dramatically increasing performance. B

📥 Download Datasheet

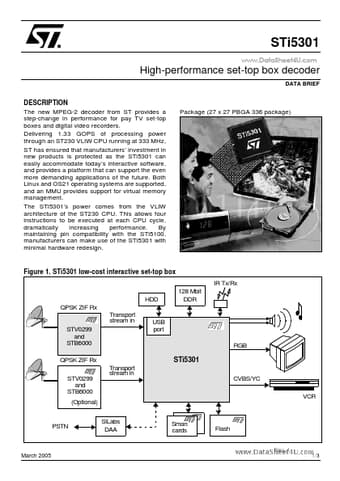

Preview of STi5301 PDF
datasheet Preview Page 2 datasheet Preview Page 3
