STI50DE100 Datasheet - ST Microelectronics

Hybrid Emitter Switched Bipolar Transistor ESBT

STI50DE100 Features

* VCS(ON) 1.3 V

* IC 50 A RCS(ON) 0.026 W High voltage / high current Cascode configuration Ultra low equivalent on resistance Very fast-switch up to 150 kHz Ultra low Ciss Low dynamic VCS(ON) 1 2 3 4

* I4PAC-4L Applications

* Internal schematic diagrams In

STI50DE100 General Description

The STI50DE100 is manufactured in a hybrid structure, using dedicated high voltage Bipolar and low voltage MOSFET technologies, aimed to providing the best performance in ESBT topology. The STI50DE100 is designed for use in industrial converters and/or welding equipment. Order codes Part Number STI.

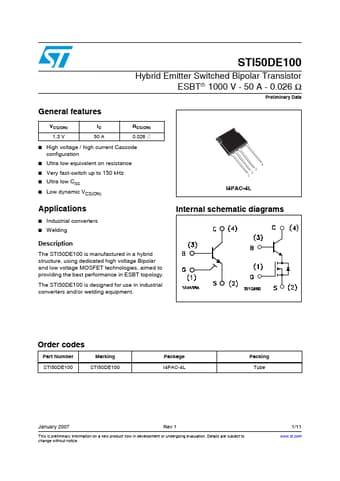

STI50DE100 Datasheet (334.61 KB)

Preview of STI50DE100 PDF

Datasheet Details

Part number:

STI50DE100

Manufacturer:

STMicroelectronics ↗

File Size:

334.61 KB

Description:

Hybrid emitter switched bipolar transistor esbt.
