STI5300 - High-performance set-top box decoder

Product Overview

STMicroelectronics

Datasheet Details

Part number	STI5300
Manufacturer	STMicroelectronics
File Size	113.31 KB
Description	High-performance set-top box decoder
Datasheet	STI5300 Datasheet

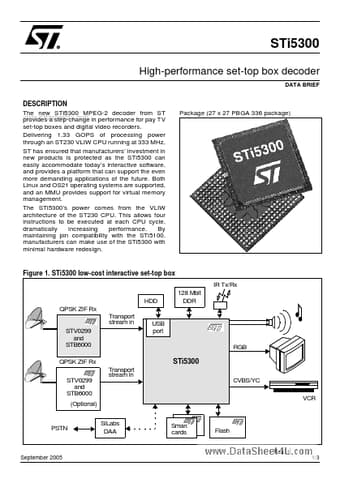

Additional preview pages of the STI5300 datasheet.

Product details

Description

The new STi5300 MPEG-2 decoder from ST www.datasheet4u.com provides a step-change in performance for pay TV set-top boxes and digital video recorders.

Features

ST231 VLIW host CPU.
333 MHz, 32 Kbyte ICache, 32 Kbyte DCache.
up to 1.333 GOPs at 333 MHz.
dynamic memory management through MMU.
PAL/NTSC/SECAM encoder.
RGB, CVBS, Y/C and YUV outputs with 10-bit DACs.
encoding of CGMS, Teletext, WSS, VPS, close caption Audio subsystem.
MPEG-1 layers I/II, MP3.
Dolby® Digital decoding.
Dolby Pro Logic® compatible output.
PCM input, mixing and sample.
