STI55NF03L Datasheet, Mosfet, STMicroelectronics

STI55NF03L Features

  • Mosfet Type STI55NF03L VDSS 30 V RDS(on) max < 0.013 Ω ID 55 A
  • Optimized for high switching operation
  • Low gate charge
  • Logic level gate drive Application

PDF File Details

Part number:

STI55NF03L

Manufacturer:

STMicroelectronics ↗

File Size:

188.12kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting tra

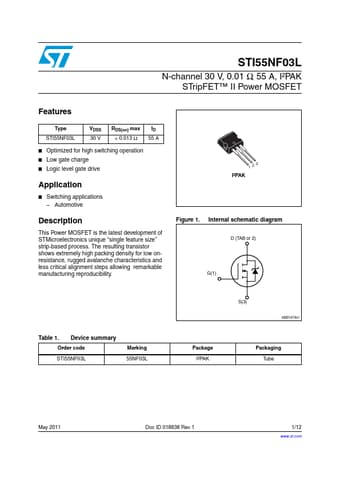

Datasheet Preview: STI55NF03L 📥 Download PDF (188.12kb)
Page 2 of STI55NF03L Page 3 of STI55NF03L

STI55NF03L Application

  • Applications
      – Automotive Description This Power MOSFET is the latest development of STMicroelectronics unique “single feature size
