STK800 Datasheet, Mosfet, ST Microelectronics

STK800 Features

  • Mosfet Type STK800
  • VDSS 30V RDS(on) <0.0078 Ω RDS(on)
  • Qg 80.4nC
  • mΩ PTOT 5.2W Ultra low top and bottom junction to case thermal resistance Very low capacitances 1

PDF File Details

Part number:

STK800

Manufacturer:

STMicroelectronics ↗

File Size:

263.55kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronics unique “Single Feature Size™” strip-based process. The resulting tr

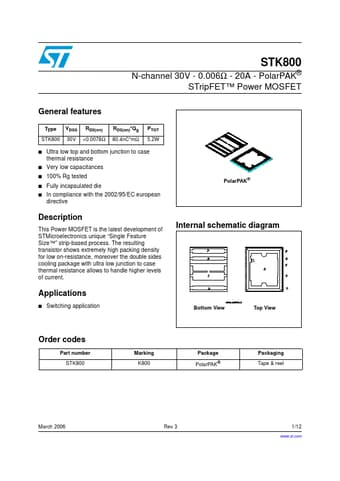

Datasheet Preview: STK800 📥 Download PDF (263.55kb)
Page 2 of STK800 Page 3 of STK800

STK800 Application

  • Applications
  • Switching application Bottom View Top View Order codes Part number STK800 Marking K800 Package PolarPAK ® Packaging Tape
