STLC5046, PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER

The STLC5046 is a monolithic programmable 4 channel codec and filter.

It operates with a single +3.3V supply.

The analog interface is based on a receive output buffer driving the SLIC RX input and on an amplifier input stage.

Due to the single supply voltage a proper midsupply reference level is gen

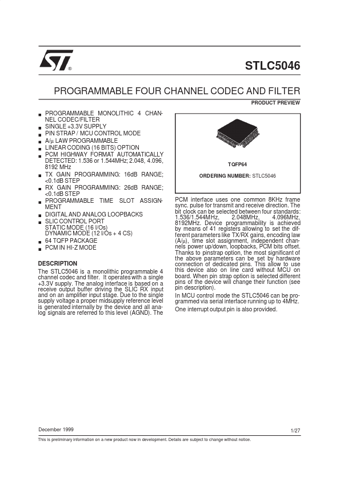

® STLC5046 PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER PRODUCT PREVIEW PROGRAMMABLE MONOLITHIC 4 CHANNEL CODEC/FILTER SINGLE +3.3V SUPPLY PIN STRAP / MCU CONTROL MODE A/µ LAW PROGRAMMABLE LINEAR CODING (16 BITS) OPTION PCM HIGHWAY FORMAT AUTOMATICALLY DETECTED: 1.536 or 1.544MHz; 2.048, 4.096, 8192 MHz TX GAIN PROGRAMMING: 16dB RANGE; <0.1dB STEP RX GAIN PROGRAMMING: 26dB RANGE; <0.1dB STEP PROGRAMMABLE TIME SLOT ASSIGNMENT DIGITAL AND ANALOG LOOPBACKS SLIC CONTROL PORT STATIC MODE (16 I/Os) D
