STLC5048 Datasheet (ST Microelectronics) - FULLY PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER

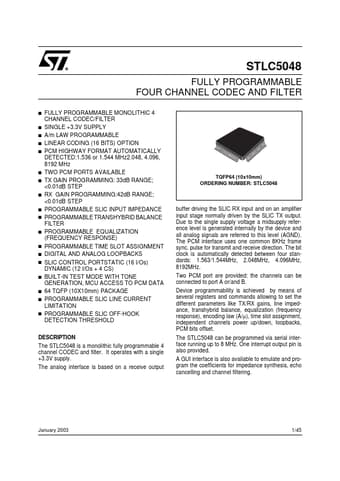

STLC5048, FULLY PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER

The STLC5048 is a monolithic fully programmable 4 channel CODEC and filter.

It operates with a single +3.3V supply.

The analog interface is based on a receive output January 2003 1/45 STLC5048 BLOCK DIAGRAM VCC VEE VDD VSS SUB CAP M1 M0 ANALOG FRONT END DIGITAL PROCESSOR PCM INTERFACE FS MCLK

STLC5048 FULLY PROGRAMMABLE FOUR CHANNEL CODEC AND FILTER s s s s s s s s s s s s s s s s s s FULLY PROGRAMMABLE MONOLITHIC 4 CHANNEL CODEC/FILTER SINGLE +3.3V SUPPLY A/m LAW PROGRAMMABLE LINEAR CODING (16 BITS) OPTION PCM HIGHWAY FORMAT AUTOMATICALLY DETECTED:1.536 or 1.544 MHz2.048, 4.096, 8192 MHz TWO PCM PORTS AVAILABLE TX GAIN PROGRAMMING: 33dB RANGE; <0.01dB STEP RX GAIN PROGRAMMING:42dB RANGE; <0.01dB STEP PROGRAMMABLE SLIC INPUT IMPEDANCE PROGRAMMABLE TRANSHYBRID BALANCE FILTER PROGRAM
