STLC60133 Datasheet - ST Microelectronics

STLC60133 XDSL LINE DRIVER

The STLC60133 is a dual amplifier featuring a high slew rate and a large bandwidth optimized for XDSL applications. The device is available in a HTSSOP 28 pin package (4x9 mm) with an exposed leadframe. Thanks to its small package this line driver is suitable for high density ADSL line card. Figure .
STLC60133 XDSL LINE DRIVER PRELIMINARY DATA s s s LOW NOISE : 4nV/ H z HIGH PEAK OUTPUT CURRENT: 500 mA HIGH SPEED 140MHz Gain Bandwidth 30MHz Gain Flatness 400 V/us Slew Rate s LOW POWER OPERATION ±5V to ±15V Voltage Supply 12.5 mA/Amp (typ) Supply current Power reduced Current HTSSOP28 ORDERING NUMBER: STLC60133 Temperature Range: -40°C to +85°C s s s s LOW SINGLE TONE DISTORTION THERMAL AND OVERLOAD PROTECTION HTSSOP28 PACKAGE .

STLC60133_STMicroelectronics.pdf

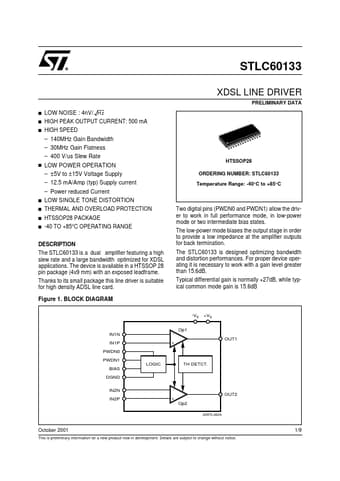

Preview of STLC60133 PDF
STLC60133 Datasheet Preview Page 2 STLC60133 Datasheet Preview Page 3

Datasheet Details

Part number:

STLC60133

Manufacturer:

STMicroelectronics ↗

File Size:

91.48 KB

Description:

Xdsl line driver.
