STLC60243 Datasheet, Driver, ST Microelectronics

STLC60243 Features

  • Driver Low Noise: 3.5nV/Hz Class AB architecture High Peak Output Current: 600 mA Low Single Tone Distortion: -60dBc Thermal And Overload Protection BCD-SOI technology HTSSOP28 Package -40 TO

PDF File Details

Part number:

STLC60243

Manufacturer:

STMicroelectronics ↗

File Size:

33.17kb

Download:

📄 Datasheet

Description:

Dual channel adsl line driver. frame. The STLC60243 is designed optimizing bandwidth, distortion performances and power consumption. It can be used in Copperwing12

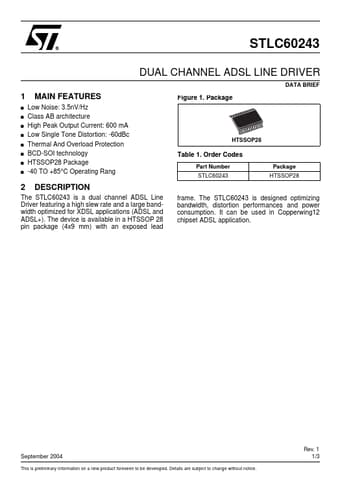

Datasheet Preview: STLC60243 📥 Download PDF (33.17kb)
Page 2 of STLC60243 Page 3 of STLC60243

STLC60243 Application

  • Applications (ADSL and ADSL+). The device is available in a HTSSOP 28 pin package (4x9 mm) with an exposed lead September 2004 This is preliminary
