STLC60135 Datasheet - ST Microelectronics

STLC60135 TOSCA ADSL DMT TRANSCEIVER

The STLC60135 is the DMT modem and ATM framer of the STMicroelectronics Tosca™ chipset. When coupled with STLC60134 analog front-end and an external controller running dedicated firmware, the product fulfils ANSI T1.413 “Issue 2” DMT ADSL specification. The STLC60135 may be used at both ends of ADSL.
® STLC60135 TOSCA™ ADSL DMT TRANSCEIVER DTM modem for ADSL, compatible with the following standards: ANSI T1.413 Issue 2 ITU-T G.992.1 (G.dmt) ITU-T G.992.2 (G.lite) Same chip for both ATU-C and ATU-R Supports either ATM (Utopia level 1 & 2) or bitstream interface 16 bit multiplexed microprocessor interface (little and big endian compatibility) Analog Front End management Dual latency paths: fast and interleaved ATM’s PHY layer: cell processing (cell delineation, .

STLC60135 Features

* Tra

STLC60135_STMicroelectronics.pdf

Preview of STLC60135 PDF

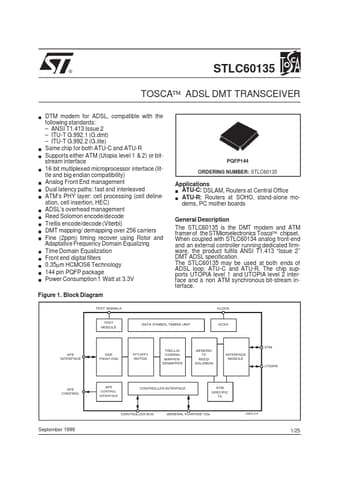

STLC60135 Datasheet Preview Page 2 STLC60135 Datasheet Preview Page 3

Datasheet Details

Part number:

STLC60135

Manufacturer:

STMicroelectronics ↗

File Size:

189.63 KB

Description:

Tosca adsl dmt transceiver.
