STLC60243 - ADSL Central Office (CO) Chipset

Product Overview

ST Microelectronics

Datasheet Details

Part number	STLC60243
Manufacturer	STMicroelectronics
File Size	120.50 KB
Description	ADSL Central Office (CO) Chipset
Datasheet	STLC60243 Datasheet
Note	This datasheet PDF includes multiple part numbers: STLC60243, STLC60454. Please refer to the document for exact specifications by model.

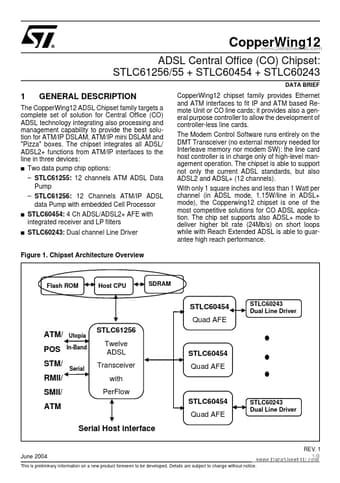

Additional preview pages of the STLC60243 datasheet.

Product details

Description

The CopperWing12 ADSL Chipset family targets a complete set of solution for Central Office (CO) ADSL technology integrating also processing and management capability to provide the best solution for ATM/IP DSLAM, ATM/IP mini DSLAM and "Pizza" boxes. Two data pump chip options: STLC61255: 12 channels ATM ADSL Data Pump STLC61256: 12 Channels ATM/IP ADSL data Pump with

Features

Network processing functionality on the line card.
First stage switching Cell and Packet processing.
-AAL5 and AAL2 SAR functions on chip.
ATM line card switch.
Serial ATM.
PTM-TC (Packet Over HDLC).
Traffic Management and Policing.
Configurable backplane interfaces.
Utopia Level 2&3, PoS, RMII, SMII, Serial ATM, STM 2/8 STLC61255 www. DataSheet4U. com 12.
