STLC61256

ADSL Central Office (CO) Chipset

STLC61256 Features

* Network processing functionality on the line card

* First stage switching Cell and Packet processing

* -AAL5 and AAL2 SAR functions on chip

* ATM line card switch

* Serial ATM

* PTM-TC (Packet Over HDLC)

* Traffic Management and Policing

STLC61256 General Description

The CopperWing12 ADSL Chipset family targets a complete set of solution for Central Office (CO) ADSL technology integrating also processing and management capability to provide the best solution for ATM/IP DSLAM, ATM/IP mini DSLAM and "Pizza" boxes. The chipset integrates all ADSL/ ADSL2+ functions.

STLC61256 Datasheet (120.50 KB)

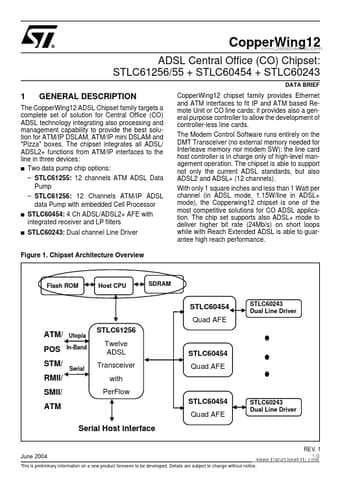

Preview of STLC61256 PDF

Datasheet Details

Part number:

STLC61256

Manufacturer:

STMicroelectronics ↗

File Size:

120.50 KB

Description:

Adsl central office (co) chipset.
