STP16NK65Z - N-CHANNEL 650V-0.38OHM-13A TO-220 I2SPAK Zener - Protected SuperMESH MOSFET

Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Features

  • TYPE STP16NK65Z STB16NK65Z-S s s s s s s Figure 1: Package ID 13 A 13 A Pw 190 W 190 W VDSS 650 V 650 V RDS(on) < 0.50 Ω < 0.50 Ω.

📥 Download Datasheet

Datasheet preview – STP16NK65Z

Datasheet Details

Part number STP16NK65Z
Manufacturer STMicroelectronics
File Size 286.33 KB
Description N-CHANNEL 650V-0.38OHM-13A TO-220 I2SPAK Zener - Protected SuperMESH MOSFET
Datasheet download datasheet STP16NK65Z Datasheet
Additional preview pages of the STP16NK65Z datasheet.

📁 Similar Datasheet

  • STP16N50M2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP16N60M2 - N-channel Power MOSFET (STMicroelectronics)
  • STP16N65M2 - N-channel Power MOSFET (STMicroelectronics)
  • STP16N65M5 - N-channel Power MOSFET (STMicroelectronics)
  • STP16N65M5 - N-Channel MOSFET (INCHANGE)
  • STP16NF06 - N-Channel MOSFET (INCHANGE)
  • STP16NF25 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP16NM50N - N-channel Power MOSFET (STMicroelectronics)
  • STP160N3LL - N-channel MOSFET (STMicroelectronics)
  • STP160N4LF6 - N-CHANNEL POWER MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

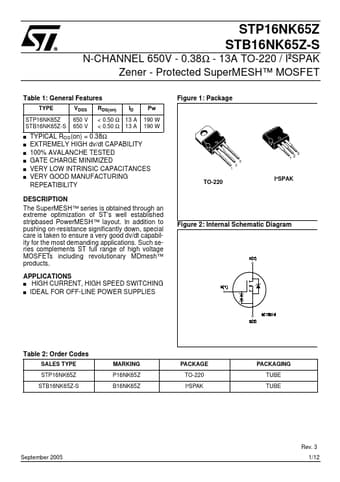

STP16NK65Z STB16NK65Z-S N-CHANNEL 650V - 0.38Ω - 13A TO-220 / I2SPAK Zener - Protected SuperMESH™ MOSFET Table 1: General Features TYPE STP16NK65Z STB16NK65Z-S s s s s s s Figure 1: Package ID 13 A 13 A Pw 190 W 190 W VDSS 650 V 650 V RDS(on) < 0.50 Ω < 0.50 Ω TYPICAL RDS(on) = 0.38Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED GATE CHARGE MINIMIZED VERY LOW INTRINSIC CAPACITANCES VERY GOOD MANUFACTURING REPEATIBILITY 3 12 3 1 2 TO-220 I²SPAK DESCRIPTION The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.
