STP20NE06LFP, STP20NE06L, N-CHANNEL POWER MOSFET

® STP20NE06L STP20NE06LFP N - CHANNEL 60V - 0.06 Ω - 20A TO-220/TO-220FP STripFET™ POWER MOSFET TYPE STP20NE06L STP20NE06LF P s s s s s V DSS 60 V .
This Power Mosfet is the latest development of STMicroelectronics unique ” Single Feature Size™ ” strip-based process.

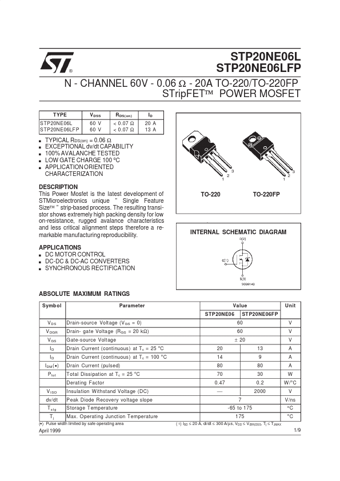

datasheet Preview Page 1 from Datasheet4u.com

STP20NE06L_STMicroelectronics.pdf

STP20NE06LFP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP20NE06LFP, STP20NE06L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP20NE06LFP, STP20NE06L

Manufacturer:

STMicroelectronics ↗

File Size:

104.15 KB

Description:

N-CHANNEL POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP20NE06LFP, STP20NE06L.
Please refer to the document for exact specifications by model.

Applications

* s DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symb ol Parameter Value STP20NE06 V DS V DGR V GS ID ID I DM (
* ) P tot V ISO dv/dt T s tg Tj April 1999 Drain-source Voltage (V GS = 0) Drain- g
