STP20NE10, N-CHANNEL POWER MOSFET

® STP20NE10 N - CHANNEL 100V - 0.07Ω - 20A - TO-220 STripFET™ MOSFET TYPE ST P20NE10 s s s s V DSS 100 V R DS(on) < 0.1 Ω ID 20 A TYPICAL RDS(on.
This Power MOSFET is the latest development of SGS-THOMSON unique ”Single Feature Size™ ” strip-based process.

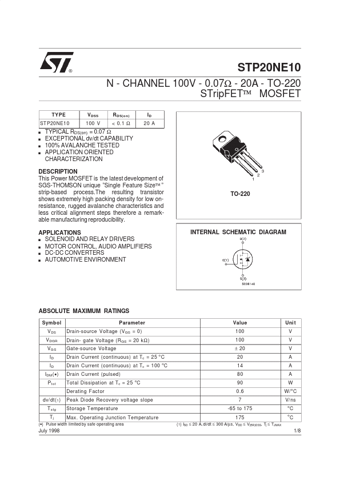

datasheet Preview Page 1 from Datasheet4u.com

STP20NE10_STMicroelectronics.pdf

STP20NE10 Datasheet Preview — Preview of STP20NE10 PDF

Datasheet Details

Part number:

STP20NE10

Manufacturer:

STMicroelectronics ↗

File Size:

81.31 KB

Description:

N-CHANNEL POWER MOSFET

Applications

* s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC CONVERTERS s AUTOMOTIVE ENVIRONMENT 1 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
