STP20NF06 N-CHANNEL POWER MOSFET

N-CHANNEL 60V - 0.06 Ω - 20A TO-220/TO-220FP STripFET™ II POWER MOSFET Table 1: General .
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP20NF06_STMicroelectronics.pdf

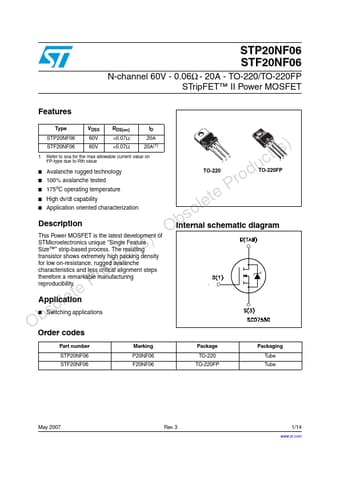

Preview of STP20NF06 PDF

Datasheet Details

Part number:

STP20NF06

Manufacturer:

STMicroelectronics ↗

File Size:

321.73 KB

Description:

N-CHANNEL POWER MOSFET

Features

* TYPE STP20NF06 STF20NF06
* STP20NF06 STF20NF06 Figure 1:Package RDS(on) < 0.07 Ω < 0.07 Ω ID 20 A 20 A(

Applications

* DC MOTOR CONTROL
* DC-DC & DC-AC CONVERTERS Figure 2: Internal Schematic Diagram Table 2: Order Codes Part Number STP20NF06 STF20NF06 MARKING P20NF06 F20NF06 PACKAGE TO-220 TO-220FP PACKAGING TUBE TUBE Table 3: ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt
