STP20NK50Z N-CHANNEL POWER MOSFET

STP20NK50Z Description

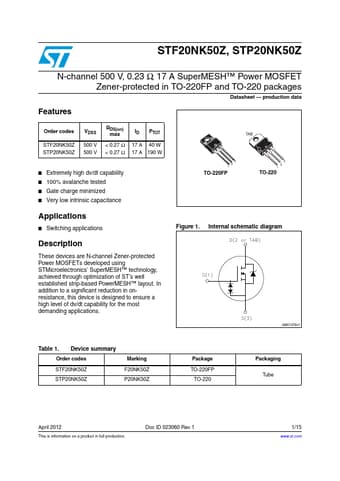

STP20NK50Z - STW20NK50Z N-CHANNEL 500V - 0.23Ω - 20A TO-220/TO-247 Zener-Protected SuperMESH™Power MOSFET TARGET DATA TYPE STP20NK50Z STW20NK50Z s s s.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout.

STP20NK50Z Features

* OF GATE-TO-SOURCE ZENER DIODES The built-in back-to-back Zener diodes have specifically been designed to enhance not only the device’s ESD capability, but also to make them safely absorb possible voltage transients that may occasionally be applied from gate to source. In this respect the Zener volta

STP20NK50Z Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS HIGH CURRENT, HIGH SPEED SWITCHING s IDEAL FOR OFF-LINE POWER SUPPLIES, ADAPTORS AND PFC s ORDERING INFORMATION SALES TYPE STP20NK50Z STW20NK50Z MARKING
