STP36N06L Datasheet - ST Microelectronics

STP36N06L N-CHANNEL MOSFET TRANSISTOR

w w a D . w S a t e e h U 4 t m o .c STP36N06L STP36N06LFI N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR R DS(on) < 0.04 Ω < 0.04 Ω ID 36 A 21 A TYPE VDSS 60 V 60 V STP36N05L STP36N05LFI s s s s s s s s s TYPICAL RDS(on) = 0.033 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY LOGIC LEVEL COMPATIBLE INPUT 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION 3 TO-220 APPLICATIONS s HIGH CU.

STP36N06L_STMicroelectronics.pdf

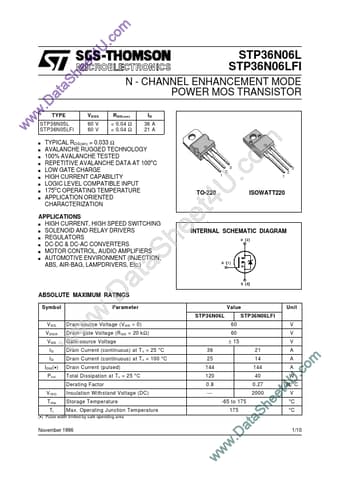

Preview of STP36N06L PDF
STP36N06L Datasheet Preview Page 2 STP36N06L Datasheet Preview Page 3

Datasheet Details

Part number:

STP36N06L

Manufacturer:

STMicroelectronics ↗

File Size:

274.92 KB

Description:

N-channel mosfet transistor.
