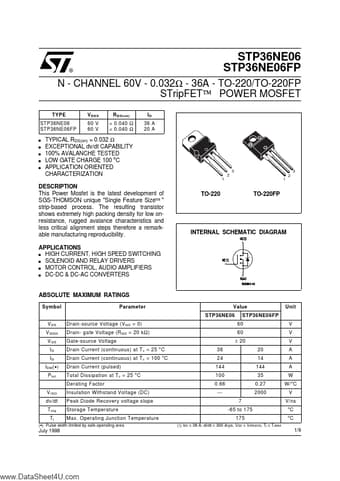

STP36NE06FP, STP36NE06 N-CHANNEL 60V - 0.032ohm - 36A - TO-220/TO-220FP STripFET POWER MOSFET

( DataSheet : www.DataSheet4U.com ) ® STP36NE06 STP36NE06FP N - CHANNEL 60V - 0.032Ω - 36A - TO-220/TO-220FP STripFET™ POWER MOSFET TYPE STP36NE06 .
This Power Mosfet is the latest development of SGS-THOMSON unique "Single Feature Size™ " strip-based process.

STP36NE06_STMicroelectronics.pdf

STP36NE06FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP36NE06FP, STP36NE06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP36NE06FP, STP36NE06

Manufacturer:

STMicroelectronics ↗

File Size:

287.17 KB

Description:

N-CHANNEL 60V - 0.032ohm - 36A - TO-220/TO-220FP STripFET POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP36NE06FP, STP36NE06.
Please refer to the document for exact specifications by model.

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s MOTOR CONTROL, AUDIO AMPLIFIERS s DC-DC & DC-AC CONVERTERS s TO-220 TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value STP36NE06 V DS V DGR V GS ID ID IDM (
* ) P tot V ISO dv/dt T stg Tj J
