STP36N60M6 - N-CHANNEL POWER MOSFET

STMicroelectronics

STP36N60M6 Datasheet Preview — Preview of STP36N60M6 PDF

Datasheet Details

Part number	STP36N60M6
Manufacturer	STMicroelectronics ↗
File Size	416.22 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP36N60M6-STMicroelectronics.pdf

STP36N60M6 Product details

Description

The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum endapplication efficiency.

Features

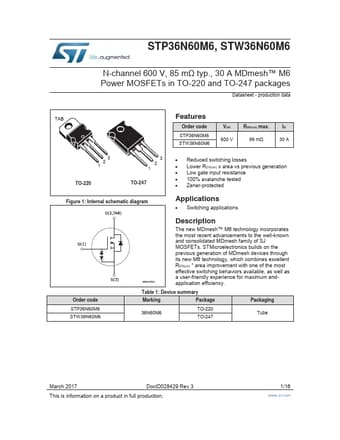

Order code VDS RDS(on) max. ID STP36N60M6 STW36N60M6 600 V 99 mΩ 30 A 3 2 1 TO-220 3 2 1 TO-247 x Reduced switching losses x Lower RDS(on) x area vs previous generation x Low gate input resistance x 100% avalanche tested x Zener-protected Figure 1: Internal schematic diagram.
