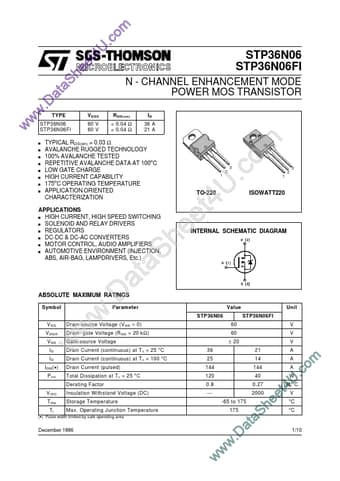

STP36N06 STP36N06FI
N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR
R DS(on) < 0.04 Ω < 0.04 Ω ID 36 A 21 A
TYPE
VDSS 60 V 60 V
STP36N06 STP36N06FI
s s s s s s s s
TYPICAL RDS(on) = 0.03 Ω AVALANCHE RUGGED TECHNOLOGY 100% AVALANCHE TESTED REPETITIVE AVALANCHE DATA AT 100oC LOW GATE CHARGE HIGH CURRENT CAPABILITY 175oC OPERATING TEMPERATURE APPLICATION ORIENTED CHARACTERIZATION
3
TO-220
APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc.
