STP36NF06 N-CHANNEL MOSFET TRANSISTOR

STP36NF06 Description

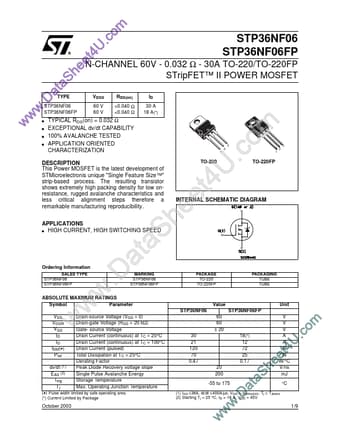

w w w s s s s STP36NF06 STP36NF06FP .D at aS e N-CHANNEL 60V - 0.032 Ω - 30A TO-220/TO-220FP e h VDSS 60 V 60 V RDS(on) <0.040 Ω <0.040 Ω ID 30.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP36NF06 Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED Ordering Information SALES TYPE STP36NF06 STP36NF06FP ABSOLUTE MAXIMUM RATINGS Symbol Parameter VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt (1) EAS (2) Tstg Tj w Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Curre
