STP36NF06FP, STP36NF06 N-CHANNEL MOSFET TRANSISTOR

STP36NF06FP Description

w w w s s s s STP36NF06 STP36NF06FP .D at aS e N-CHANNEL 60V - 0.032 Ω - 30A TO-220/TO-220FP e h VDSS 60 V 60 V RDS(on) <0.040 Ω <0.040 Ω ID 30.
This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

STP36NF06FP Applications

* s HIGH CURRENT, HIGH SWITCHING SPEED Ordering Information SALES TYPE STP36NF06 STP36NF06FP ABSOLUTE MAXIMUM RATINGS Symbol Parameter VDS VDGR VGS ID ID IDM(
* ) Ptot dv/dt (1) EAS (2) Tstg Tj w Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Curre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STP36NF06FP, STP36NF06. Please refer to the document for exact specifications by model.

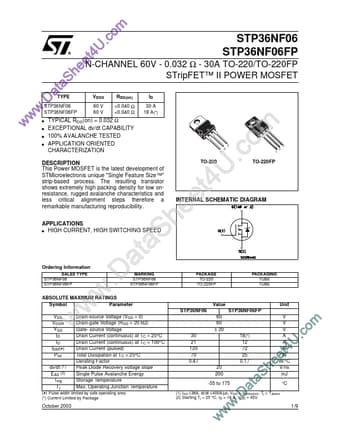

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STP36NF06FP, STP36NF06
Manufacturer
STMicroelectronics ↗
File Size
291.16 KB
Datasheet
STP36NF06_STMicroelectronics.pdf
Description
N-CHANNEL MOSFET TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: STP36NF06FP, STP36NF06.
Please refer to the document for exact specifications by model.
