STP45NF3LL - N-Channel POWER MOSFET

STP45NF3LL Description

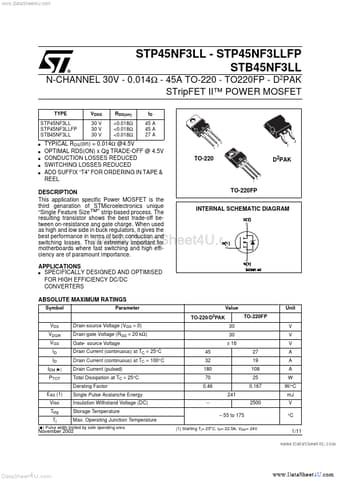

www.DataSheet4U.com STP45NF3LL - STP45NF3LLFP STB45NF3LL N-CHANNEL 30V - 0.014Ω - 45A TO-220 - TO220FP - D2PAK STripFET II™ POWER MOSFET TYPE STP45NF.
This application specific Power MOSFET is the third genaration of STMicroelectronics unique “Single Feature Size™” strip-based process.

STP45NF3LL Applications

* s SPECIFICALLY DESIGNED AND OPTIMISED FOR HIGH EFFICIENCY DC/DC CONVERTERS ABSOLUTE MAXIMUM RATINGS Symbol Parameter TO-220FP INTERNAL SCHEMATIC DIAGRAM www. DataSheet4U. com Value TO-220/D2PAK TO-220FP 30 30 ± 16 45 32 180 70 0.46 241 -
* 55 to 175 (1) Starting Tj= 25°C, ID= 22.5A, VDD= 24V
