STP55NE06 - N - CHANNEL ENHANCEMENT MODE SINGLE FEATURE SIZE POWER MOSFET

STP55NE06 Description

STP55NE06 STP55NE06FP N - CHANNEL ENHANCEMENT MODE ” SINGLE .
This Power Mosfet is the latest development of SGS-THOMSON unique ”Single Feature Size” strip-based process.

STP55NE06 Applications

* s DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value STP55NE06 V DS V DGR V GS ID ID IDM (
* ) P t ot Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source V

📥 Download Datasheet

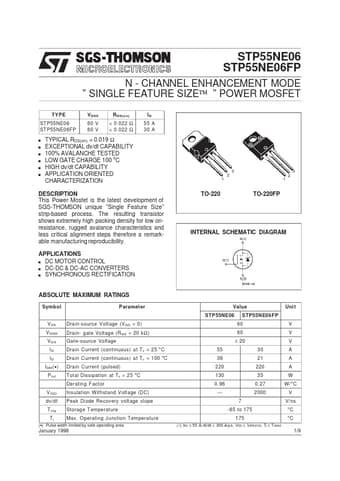

Preview of STP55NE06 PDF
