STP55NE06FP, STP55NE06, N - CHANNEL ENHANCEMENT MODE SINGLE FEATURE SIZE POWER MOSFET

STP55NE06 STP55NE06FP N - CHANNEL ENHANCEMENT MODE ” SINGLE .
This Power Mosfet is the latest development of SGS-THOMSON unique ”Single Feature Size” strip-based process.

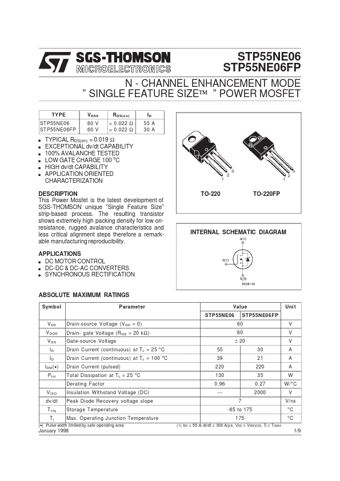

datasheet Preview Page 1 from Datasheet4u.com

STP55NE06_STMicroelectronics.pdf

STP55NE06FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP55NE06FP, STP55NE06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STP55NE06FP, STP55NE06

Manufacturer:

STMicroelectronics ↗

File Size:

120.96 KB

Description:

N - CHANNEL ENHANCEMENT MODE SINGLE FEATURE SIZE POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: STP55NE06FP, STP55NE06.
Please refer to the document for exact specifications by model.

Applications

* s DC MOTOR CONTROL s DC-DC & DC-AC CONVERTERS s SYNCHRONOUS RECTIFICATION TO-220FP INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value STP55NE06 V DS V DGR V GS ID ID IDM (
* ) P t ot Drain-source Voltage (V GS = 0) Drain- gate Voltage (R GS = 20 k Ω ) Gate-source V
