STP55NF06FP - N-CHANNEL POWER MOSFET

Product Overview

ST Microelectronics

Datasheet Details

Part number	STP55NF06FP
Manufacturer	STMicroelectronics
File Size	399.55 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	STP55NF06FP Datasheet
Note	This datasheet PDF includes multiple part numbers: STP55NF06FP, STP55NF06. Please refer to the document for exact specifications by model.

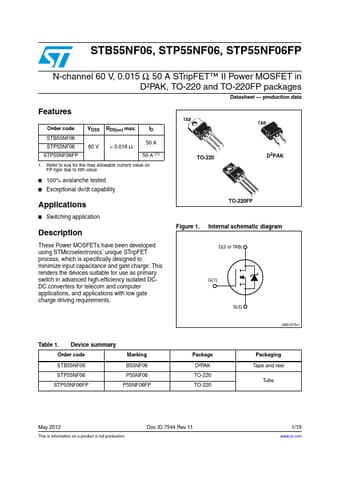

Additional preview pages of the STP55NF06FP datasheet.

Product details

Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

Order code STB55NF06 STP55NF06 STP55NF06FP VDSS RDS(on) max. ID 60 V < 0.018 Ω 50 A 50 A (1) 1. Refer to soa for the max allowable current value on FP-type due to Rth value.
100% avalanche tested.
Exceptional dv/dt capability.
