STP55NF06L Datasheet, Mosfet, ST Microelectronics

STP55NF06L Features

• Mosfet Type STP55NF06L STB55NF06L STB55NF06L-1 VDSS 60V 60V 60V RDS(on) <0.018Ω <0.018Ω <0.018Ω
• Exceptional dv/dt capability
• 100% avalanche tested
• Application

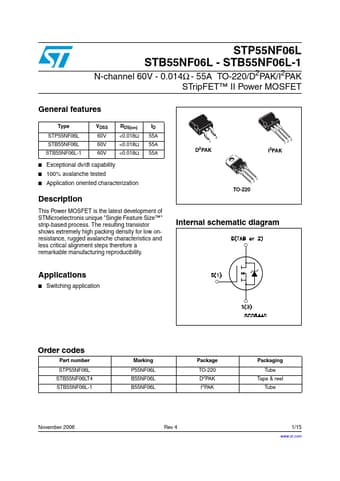

PDF File Details

Part number:

STP55NF06L

Manufacturer:

STMicroelectronics ↗

File Size:

310.26kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting tra

STP55NF06L Application

• Applications
• Switching application Order codes Part number STP55NF06L STB55NF06LT4 STB55NF06L-1 November 2006 Marking P55NF06L B55NF06L
