STPS5L25B

Low drop power Schottky rectifier

STPS5L25B Features

* Very low forward voltage drop for less power dissipation and reduced heatsink

* Optimized conduction/reverse losses trade-off which means the highest efficiency in the applications

* High power surface mount miniature package

* Avalanche specification

* ECOPACK®2 compliant comp

STPS5L25B General Description

Single Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in DPAK, this device is intended for use as a rectifier at the secondary of 3.3 V SMPS units. Table 1. Device summary Symbol Value IF(AV) VRRM Tj (max) VF(typ) 5A 25 V 150 °C 0.31 V M.

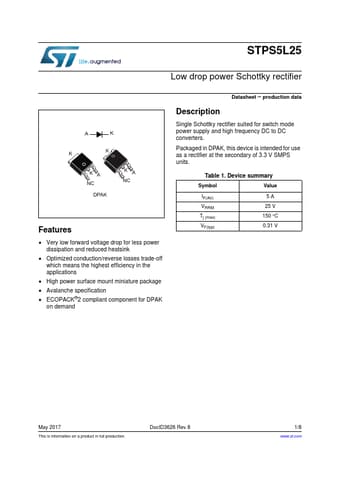

STPS5L25B Datasheet (329.14 KB)

Preview of STPS5L25B PDF

Datasheet Details

Part number:

STPS5L25B

Manufacturer:

STMicroelectronics ↗

File Size:

329.14 KB

Description:

Low drop power schottky rectifier.
