STPS5045SG, STPS5045S Power Schottky rectifier

STPS5045SG Description

STPS5045S Power Schottky rectifier .
This device is a dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS5045SG Features

* Low forward voltage drop
* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Low thermal resistance
* 200 °C maximum junction temperature

STPS5045SG Applications

* Also ideal for PV cell-bypass diode for junction and smart junction boxes. Datasheet
* production data A K A K A A D2PAK STPS5045SG-TR j Table 1. Device summary Symbol IF(AV) VRRM Tj (max) VF(max) Value 50 A 45 V 200 °C 0.48 V June 2012 This is information on a product in full producti

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS5045SG, STPS5045S. Please refer to the document for exact specifications by model.

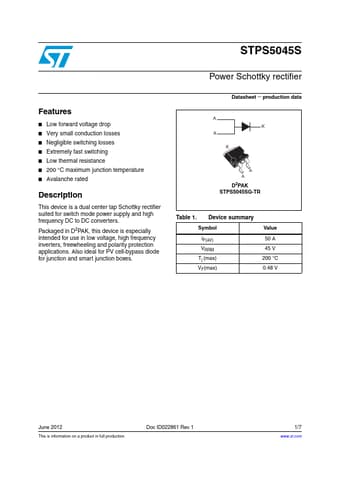

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS5045SG, STPS5045S
Manufacturer
STMicroelectronics ↗
File Size
149.56 KB
Datasheet
STPS5045S-STMicroelectronics.pdf
Description
Power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS5045SG, STPS5045S.
Please refer to the document for exact specifications by model.
