STPS5H100SFY Datasheet, Rectifier, STMicroelectronics

STPS5H100SFY Features

  • Rectifier
  • AEC-Q101 qualified
  • Low leakage current
  • Negligible switching losses
  • Avalanche capability specified
  • 175 °C maximum junction temperature <

PDF File Details

Part number:

STPS5H100SFY

Manufacturer:

STMicroelectronics ↗

File Size:

456.73kb

Download:

📄 Datasheet

Description:

Automotive 100v schottky rectifier. The STPS5H100SFY power Schottky rectifier has been designed for automotive applications. Packaged in PSMC (TO-277A), this device prov

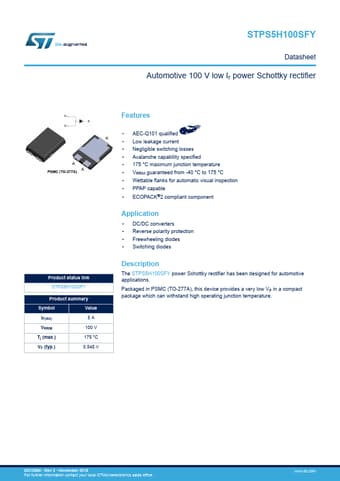

Datasheet Preview: STPS5H100SFY 📥 Download PDF (456.73kb)
Page 2 of STPS5H100SFY Page 3 of STPS5H100SFY

STPS5H100SFY Application

  • Applications Packaged in PSMC (TO-277A), this device provides a very low VF in a compact package which can withstand high operating junction temper
