STPS5H100B Datasheet, Rectifier, ST Microelectronics

STPS5H100B Features

• Rectifier
• Negligible switching losses
• High junction temperature capability
• Low leakage current
• Good trade-off between leakage current and forward voltage d

PDF File Details

Part number:

STPS5H100B

Manufacturer:

STMicroelectronics ↗

File Size:

480.12kb

Download:

📄 Datasheet

Description:

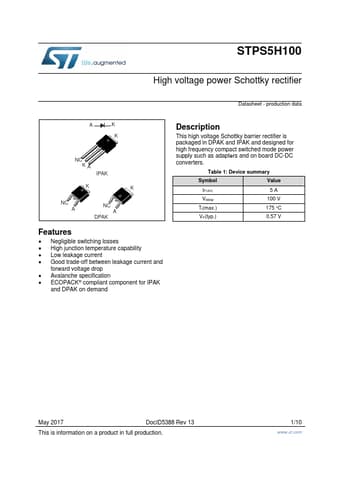

High voltage power schottky rectifier. This high voltage Schottky barrier rectifier is packaged in DPAK and IPAK and designed for high frequency compact switched mode power
