STPS5H100AF

High voltage power Schottky rectifier

STPS5H100AF Features

* Negligible switching losses

* High junction temperature capability

* Low leakage current

* Good trade-off between leakage current and forward voltage drop

* Avalanche specification

* ECOPACK® compliant component Description This high voltage Schottky barrier rectifier devi

STPS5H100AF General Description

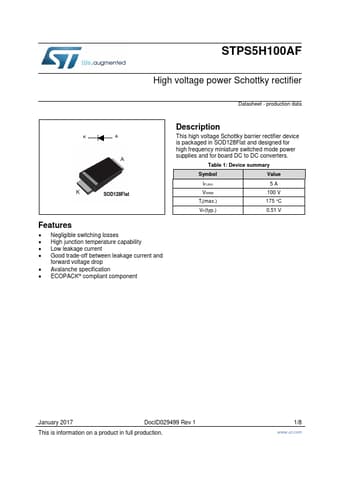

This high voltage Schottky barrier rectifier device is packaged in SOD128Flat and designed for high frequency miniature switched mode power supplies and for board DC to DC converters. Table 1: Device summary Symbol Value IF(AV) VRRM Tj(max.) VF(typ.) 5A 100 V 175 °C 0.51 V January 2017 DocID0.
