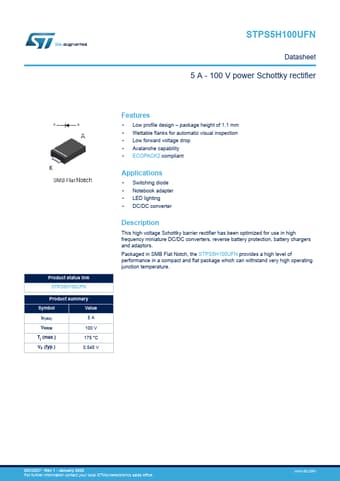

STPS5H100UFN Datasheet, rectifier equivalent, STMicroelectronics

STPS5H100UFN Features

• Rectifier
• Low profile design
    – package height of 1.1 mm
• Wettable flanks for automatic visual inspection
• Low forward voltage drop
• Avalanche

PDF File Details

Part number:

STPS5H100UFN

Manufacturer:

STMicroelectronics ↗

File Size:

164.88kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. This high voltage Schottky barrier rectifier has been optimized for use in high frequency miniature DC/DC converters, reverse battery

STPS5H100UFN Application

• Applications
• Switching diode
• Notebook adapter
• LED lighting
• DC/DC converter Description This high voltage Sch
