STPS5H100 Datasheet, Rectifier, ST Microelectronics

STPS5H100 Features

  • Rectifier
  • Negligible switching losses
  • High junction temperature capability
  • Low leakage current
  • Good trade-off between leakage current and forward voltage d

PDF File Details

Part number:

STPS5H100

Manufacturer:

STMicroelectronics ↗

File Size:

480.12kb

Download:

📄 Datasheet

Description:

High voltage power schottky rectifier. This high voltage Schottky barrier rectifier is packaged in DPAK and IPAK and designed for high frequency compact switched mode power

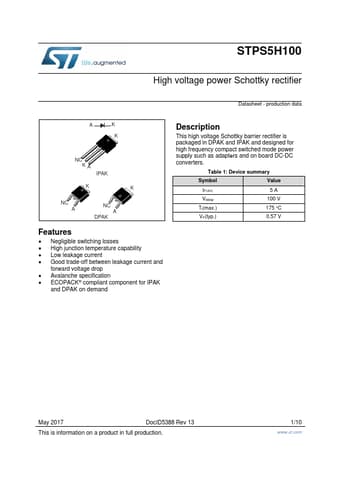

Datasheet Preview: STPS5H100 📥 Download PDF (480.12kb)
Page 2 of STPS5H100 Page 3 of STPS5H100
