STS4C3F60L, StripFET MOSFET

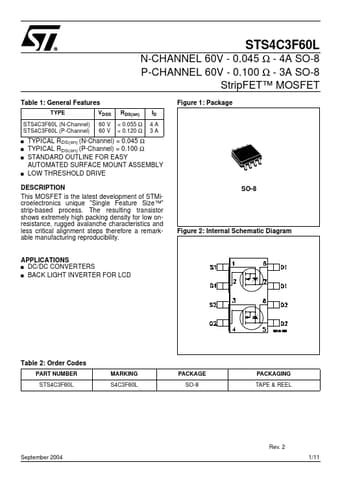

STS4C3F60L N-CHANNEL 60V - 0.045 Ω - 4A SO-8 P-CHANNEL 60V - 0.100 Ω - 3A SO-8 StripFET™ MOSFET Table 1: General .
This MOSFET is the latest development of STMicroelectronics unique ”Single Feature Size™” strip-based process.

datasheet Preview Page 1 from Datasheet4u.com

STS4C3F60L_STMicroelectronics.pdf

STS4C3F60L Datasheet Preview — Preview of STS4C3F60L PDF

Datasheet Details

Part number:

STS4C3F60L

Manufacturer:

STMicroelectronics ↗

File Size:

434.88 KB

Description:

StripFET MOSFET

Features

* TYPE STS4C3F60L (N-Channel) STS4C3F60L (P-Channel) s s s Figure 1: Package RDS(on) < 0.055 Ω < 0.120 Ω ID 4A 3A VDSS 60 V 60 V s TYPICAL RDS(on) (N-Channel) = 0.045 Ω TYPICAL RDS(on) (P-Channel) = 0.100 Ω STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY LOW THRESHOLD DRIVE SO-8 DESCRI

Applications

* s DC/DC CONVERTERS s BACK LIGHT INVERTER FOR LCD Table 2: Order Codes PART NUMBER STS4C3F60L MARKING S4C3F60L PACKAGE SO-8 PACKAGING TAPE & REEL Rev. 2 September 2004 1/11 STS4C3F60L Table 3: Absolute Maximum ratings Symbol VDS VDGR VGS ID ID IDM ( ) PTOT Tj Tstg Parameter Drain-source Voltage (V
