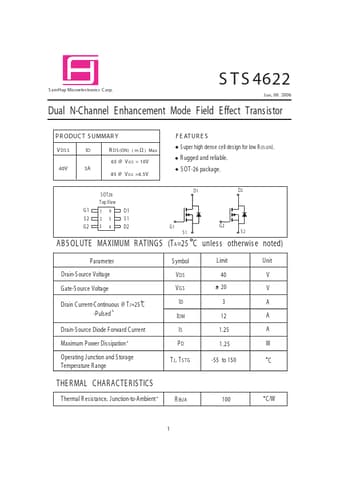

STS4622, Dual N-Channel Enhancement Mode Field Effect Transistor

S amHop Microelectronics C orp.

S T S 4622 J un, 06 2006 Dual N-Channel Enhancement Mode Field Effect Transistor P R ODUC T S UMMAR Y V DS S 40V F E AT UR E S ( m : ) Max ID 3A R DS (ON) S uper high dense cell design for low R DS (ON ).

65 @ V G S = 10V 85 @ V G S =4.5V R ugged and reliable.

S OT-26 package.

D1 D2 S OT26 Top View G1 S2 G2 1 2 3 6 5 4 D1 S1 D2 G1 S1 G2 S2 AB S OL UTE MAXIMUM R ATINGS (T A =25 C unles s otherwis e noted) P arameter Drain-S ource Voltage Gate-S ourc
