STS4NF100 N-CHANNEL POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

N-CHANNEL 100V - 0.065 Ω - 4A SO-8 STripFET™ II POWER MOSFET TYPE STS4NF100 s s s s STS4NF100 VDSS 100 V RDS(on) <0.070 Ω ID 4A TYPICAL RDS(on) =.
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

📥 Download Datasheet

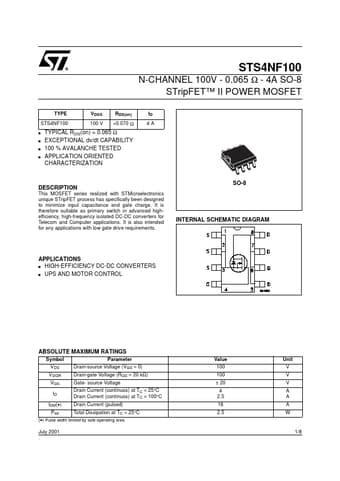

Preview of STS4NF100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* It is also intended for any applications with low gate drive requirements. SO-8 INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID IDM(
* ) Ptot Parameter Drain-source Voltage (VGS = 0) Drain-g
