STTH120L04TV1 Datasheet, Rectifier, ST Microelectronics

STTH120L04TV1 Features

  • Rectifier
  • Ultrafast switching Low reverse current Low thermal resistance Reduces switching and conduction losses Package insulation voltage: 250

PDF File Details

Part number:

STTH120L04TV1

Manufacturer:

STMicroelectronics ↗

File Size:

181.68kb

Download:

📄 Datasheet

Description:

Ultrafast high voltage rectifier. The STTH120L04TV1 uses ST 400 V technology and is specially suited for use in switching power supplies, welding equipment, and indust

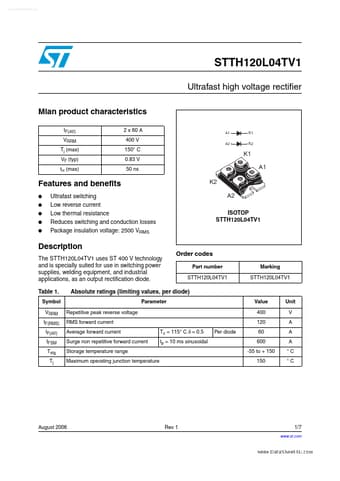

Datasheet Preview: STTH120L04TV1 📥 Download PDF (181.68kb)
Page 2 of STTH120L04TV1 Page 3 of STTH120L04TV1

STTH120L04TV1 Application

  • Applications as an output rectification diode. Table 1. Symbol VRRM IF(RMS) IF(AV) IFSM Tstg Tj Repetitive peak reverse voltage RMS forward current

TAGS

STTH120L04TV1
Ultrafast
High
Voltage
Rectifier
ST Microelectronics
